Home » Bar Bending Schedule of Staircase | Staircase Reinforcement Detail
Bar Bending Schedule | BBS

Bar Bending Schedule of Staircase | Staircase Reinforcement Detail

By Engr Waseem RajaSeptember 3, 20188 Comments3 Mins Read
Facebook Twitter Pinterest LinkedIn Telegram Tumblr Email
Share
Facebook Twitter LinkedIn Pinterest Email

Bar Bending Schedule of Staircase | Staircase Reinforcement Detail | BBS Calculation Formula | Doglegged Stair

To calculate the Bar Bending Schedule of Staircase | Staircase Reinforcement Detail | BBS Calculation Formula | Doglegged Stair, I request you to learn the Basics of Bar bending schedule and also the components of Staircase.

Staircase:-

Stairs provide access to the various floors of the building. The stair consists of series of steps with landings at appropriate intervals. The stretch between the two landings is called flight. The Space, where stairs are provided is called staircase.

To make it ease in understanding, I am calculating the quantities of a staircase by dividing into components. BBS Calculation Formula

Components of Staircase:-

Waist slab:  Waist slab refers to a slab of the stair that is inclining from the floor slab to the landing slab.

[wpdm_package id=’2607′]

Flight: The series of steps between floor and landing.

Landing: The level of floor between flight.

Step: The step consists of Riser and tread.

Tread: The tread is the flat part that you step on.

Riser: The riser is the vertical(up and down) part between each tread in the stairway. Basics of Bar bending schedule


OTHER POSTS:

  1. The Civil Engineering – Videos

  2. Bar Bending Schedule of Staircase | With Single Reinforcement Detail and Handrail Reinforcement | BBS Calculation Formula

  3. Basic Components of Building Structure | Building Elements


BAR BENDING SCHEDULE OF RCC STAIRCASE (DOGLEGGED STAIR):

PLAN OF STAIRCASE:

Bar Bending Schedule of Staircase, Staircase Reinforcement Detail, BBS Calculation Formula, Doglegged Stair, Basics of bar bending schedule
Plan of Staircase

CROSS-SECTION OF STAIRCASE:

Bar Bending Schedule of Staircase, Staircase Reinforcement Detail, BBS Calculation Formula, Doglegged Stair, Basics of bar bending schedule
Cross-section of Staircase

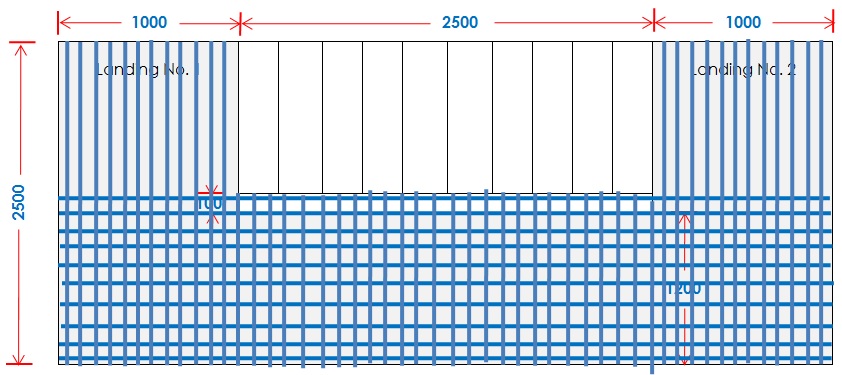

REINFORCEMENT PLAN OF STAIRCASE:

Bar Bending Schedule of Staircase, Staircase Reinforcement Detail, BBS Calculation Formula, Doglegged Stair, Basics of bar bending schedule
Reinforcement Plan of Staircase

SHAPES OF BARS:

Bar Bending Schedule of Staircase, Staircase Reinforcement Detail, BBS Calculation Formula, Doglegged Stair, Basics of bar bending schedule
Shapes of Bars

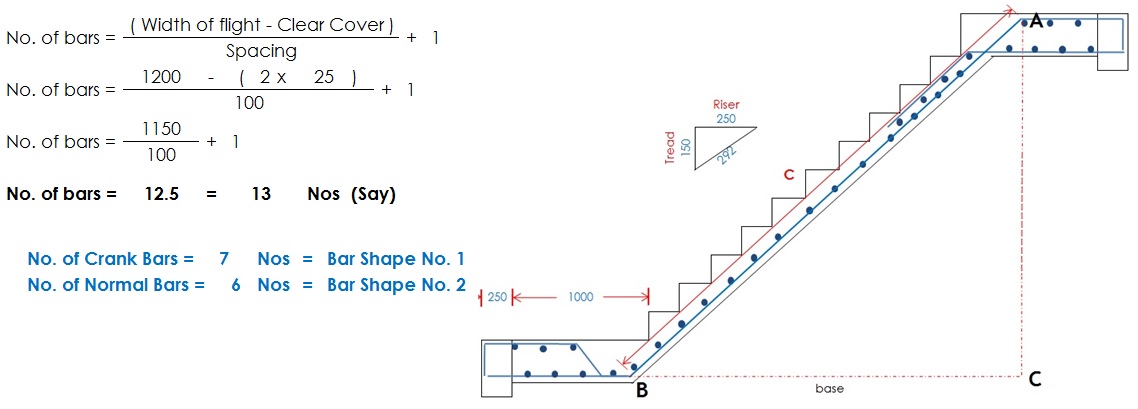

NO OF BARS:

No. of Bars
No. of Bars

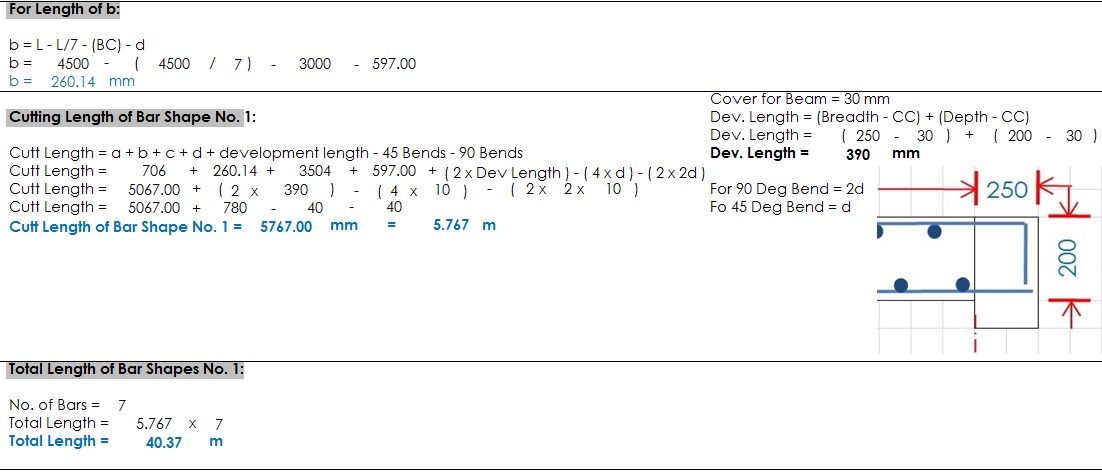

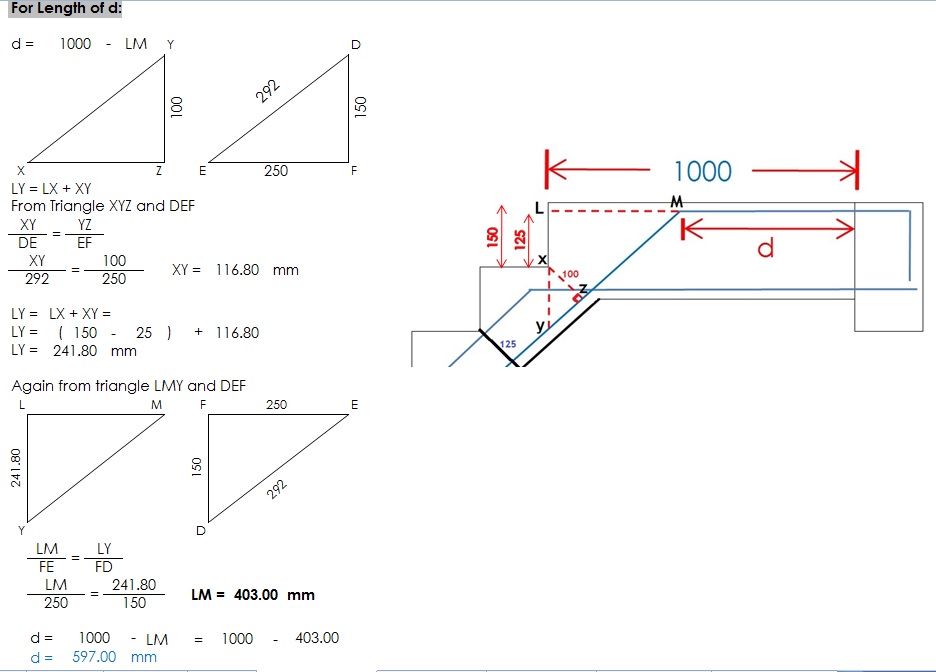

CALCULATION OF BAR SHAPE NO. 1:

Bar Bending Schedule of Staircase, Staircase Reinforcement Detail, BBS Calculation Formula, Doglegged Stair, Basics of bar bending schedule

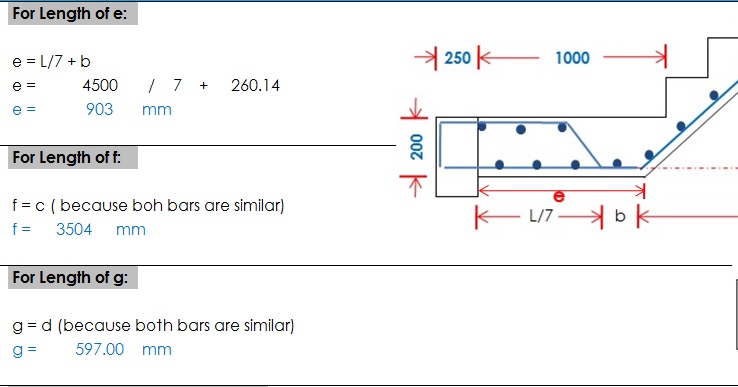

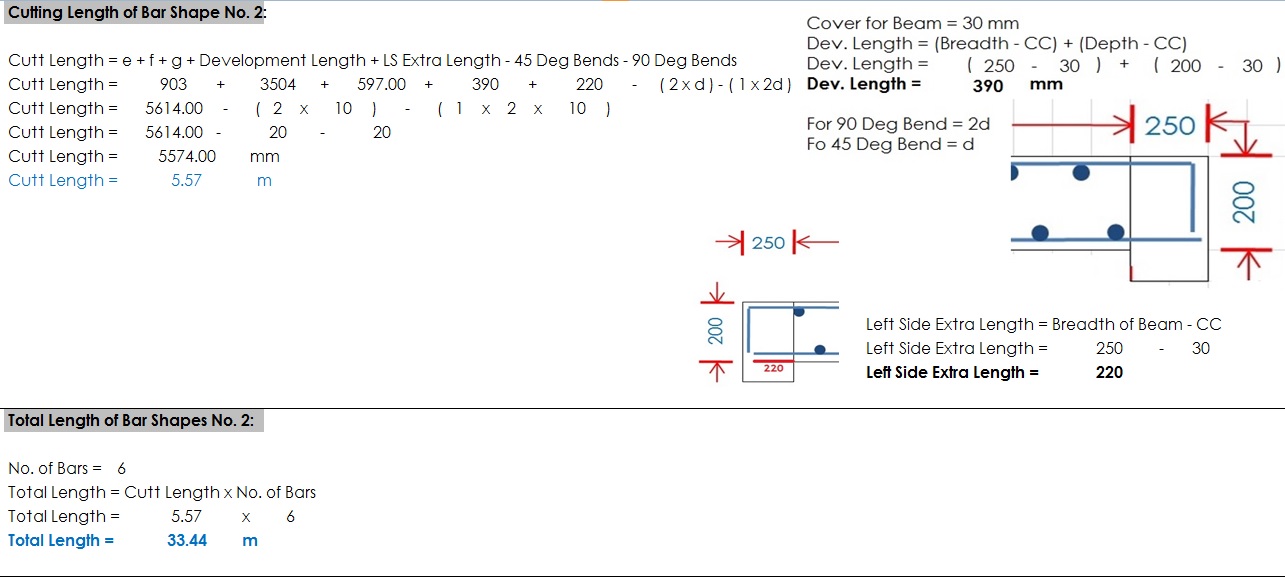

CALCULATION OF BAR SHAPE NO. 2:

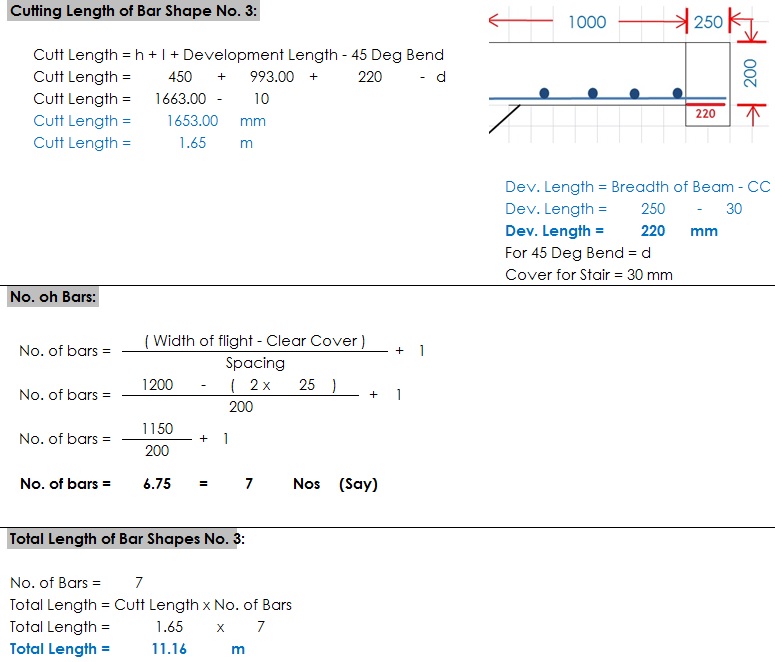

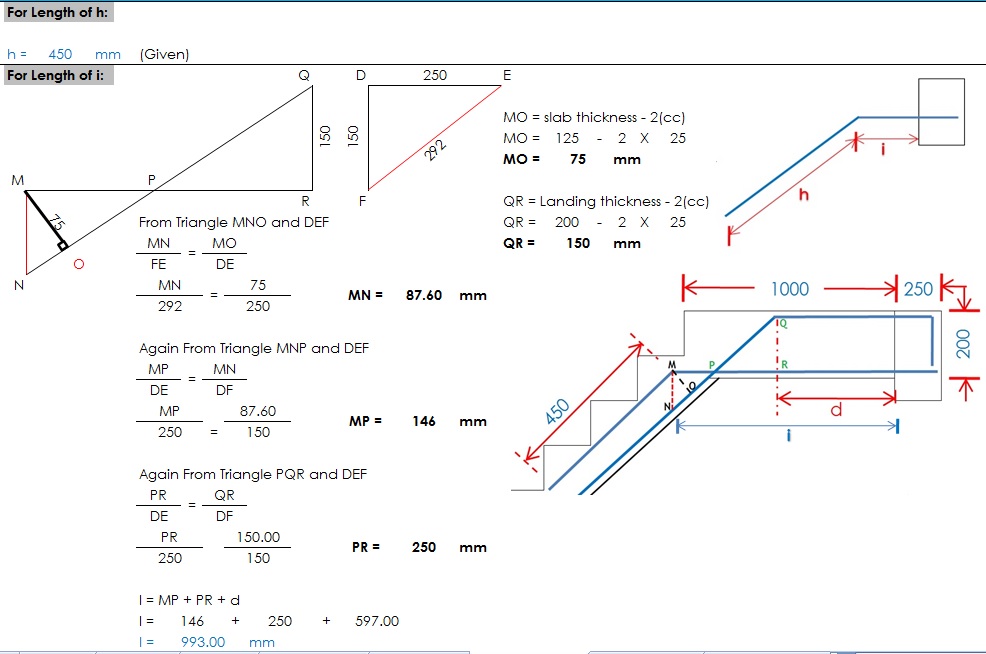

CALCULATION OF BAR SHAPE NO. 3:

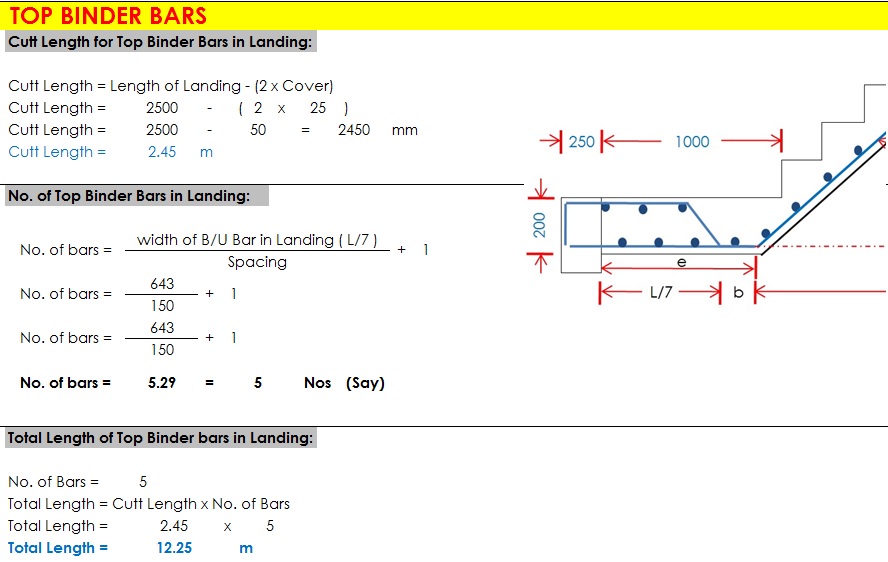

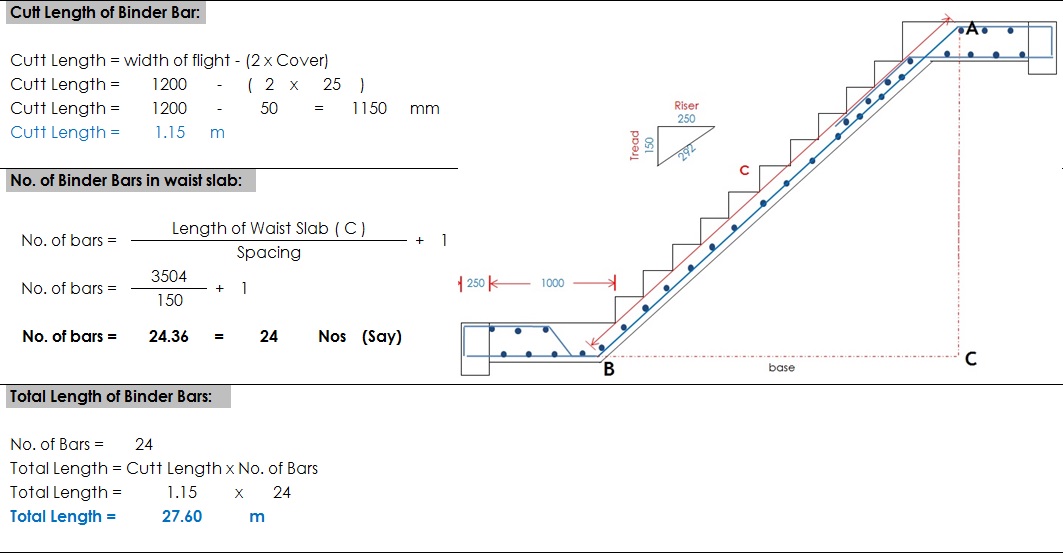

CALCULATION OF BINDER BARS:

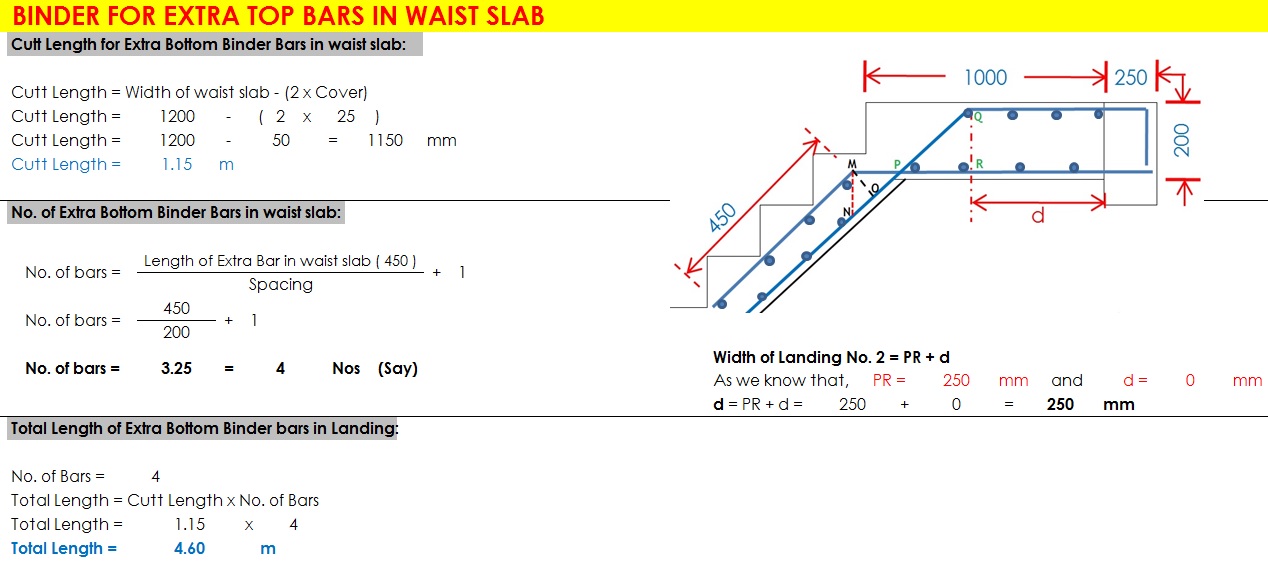

1. Calculation of Binder Bars in Waist Slab:

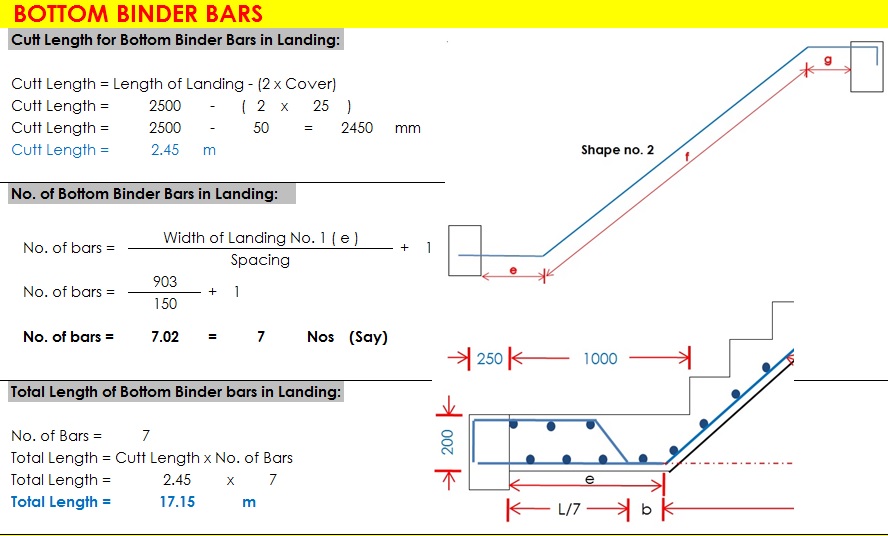

2. Calculation of Binder Bars in Landing No. 1:

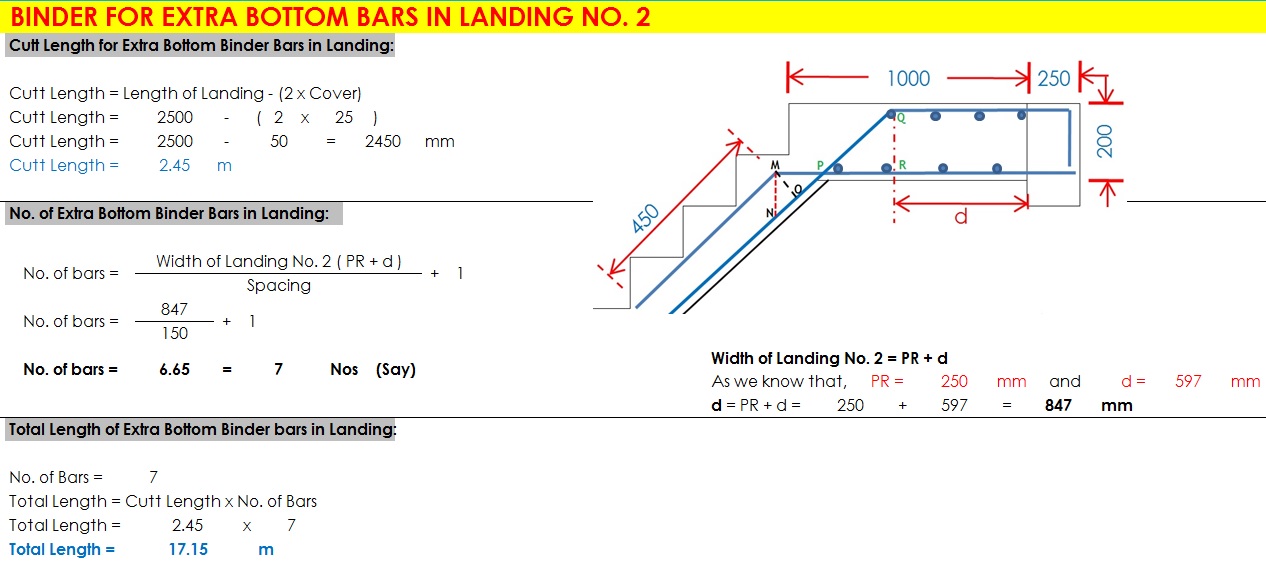

3. Calculation of Binder Bars in Landing No. 2:

TOTAL WEIGHT OF STAIRCASE REINFORCEMENT:

Bar Bending Schedule of Staircase, Staircase Reinforcement Detail, BBS Calculation Formula, Doglegged Stair, Basics of bar bending schedule
Bar Bending Schedule of Staircase | Staircase Reinforcement Detail

After this Article you must read: How to Calculate the Shuttering Quantity for Staircase


OTHER POSTS:

  1. Thumb Rules for Staircase Design Calculation | Concrete Calculation of Staircase

  2. Practical and Basic Knowledge of Civil Engineering | Top 50 Questions

  3. Bar Bending Schedule of Staircase | Staircase Reinforcement Detail

  4. Bar Bending Schedule of Staircase With Single Reinforcement Detail

  5. Bar Bending Schedule for footings | Steel Estimation for footings

  6. Bar Bending Schedule (BBS) | BBS Step by Step Preparation | Excel Sheet

  7. How to Calculate the Volume of Concrete for Staircase


Conclusion:

Full article on Bar Bending Schedule of Staircase | Staircase Reinforcement Detail | BBS Calculation Formula | Doglegged Stair. Thank you for the full reading of this article in “The Civil Engineering” platform in English. If you find this post helpful, then help others by sharing it on social media. For More detail please see the above video tutorial further you have any question regarding article please tell me in comments.
