What is  Bar Bending Schedule?

In Civil Engineering Bar Bending Schedule is the important part of Estimation chart. In the Bar Bending schedule provides the reinforcement (steel) calculation for reinforcement of concrete column , beam and slab cutting length and also use to find the types of bends of length which we provide in steel structures. Bar Bending Schedule format

BBS is used in finding cutting length of steel and total weight of steel per unit area. and we can make the bar bending schedule in Ms office Excel software.

It is important to learn the basics before dealing with BBS Bar Bending Schedule format

Prepare bar bending schedule, Preparing bar bending schedule, bending length, bar bending schedules, reinforcement cutting, bending details, bar mark reference, thus concrete construction works, steel reinforcement compared, when mechanized bar cutting, reinforcement steel requirement, quantity and quality requirements, extra steel reinforcement, easy and fast preparation, reinforced concrete work, detailed reinforcement drawings


OTHER POSTS:


Bar Bending Schedule Basics Formula | Calculation of Reinforcement Shape, Cutting and Bending Lengths:

Bar Bending Schedules Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap Length, Prepare bar bending schedule, bent up bar, bar shape


Bar Bending Schedule Formulas:


1. Commonly Used Diameter of Reinforcement Bars (in mm):

Diameter of Reinforcement Bars (in mm)

6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 28mm, 32mm, 36mm, 40mm

Diameter of Reinforcement Bars (in inches)

#3 (3/8″) , #4 (1/2″), #5(5/8″) , #6(3/4″) , #7(7/8″) , #8(1″) , #9(9/8″) , #10(10/8″)


2. Standard Length of Reinforcement Bars:

The standard length of reinforcement bars is 12m or 40 ft Bar Bending Schedule format


3. Weight of Bar Per meter Length (in kg/m):

The weight per length of the reinforcement bars is expressed as,

Weight per meter = D²/ 162

For example; if the diameter of the reinforcement bar is 6mm, then,

Weight per meter = 6²/ 162

= 0.222 kg/m how to prepare bar bending schedule

(Note: you should keep the  value of D in mm and the answer comes in m.)


4. Weight of Reinforcement Bar per 12 m Length (kg/ bar)

The weight per bar can be expressed as,

Weight / bar = Weight of Bar per m x Standard Length of Bar

= 0.225 x 12

= 2.7 kg/bar how to prepare bar bending schedule


5. Weight of Bar Per feet Length (in kg/ft):

The weight per bar can be expressed as,

Weight per feet = D² / 533

For example; if the diameter of the reinforcement bar is #4 i.e. ½ in or 12.70mm, then,

Weight per feet = 12.70²/ 533 = 0.302 kg/ft (since, D must be in mm)

Also, how to prepare bar bending schedule

Weight per feet = D²/ 52.896

For example; if the diameter of the reinforcement bar is #4, then,

Weight/ Length = 4²/ 52.896 = 0.302 kg/ ft (since, D must be in #No.)


6. Weight of Reinforcement Bar per 40 ft Length (kg/ bar)

The weight of reinforcement bar per bar can be expressed as,

 Weight / Bar = (D²/ 533 ) x standard length of bar

For example; if the diameter of the reinforcement bar is 12.70mm (#4), then,

Weight/ bar = (12.70²/ 533) * 40

= 12.10 kg/ bar

so the weight of 40ft bar is 12.10 kg/bar


7. Cutting Length of Main Reinforcement Bar with Hook:

Length of Hook = 9d, where d is the diameter

Length of Main Bar = L + 9d + 9d


8. Cutting Length of Main Bar with Bend:

Length of bend = 10d – 6d

Length of Main Bar = L + 12d + 12d


9. Concrete Cover:

Cover basically includes a clear cover and effective cover.

Clear cover for

footing is taken as 75mm,

for column 25mm to 50mm,

for beam 25 to 50mm and

for slab 25mm


10. Hook Length for Stirrups:

The hook length is commonly provided for stirrups

Hook Length = 9D [D is Diameter of the Bar]

Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap Length, Prepare bar bending schedule, bent up bar, bar bending schedule bbsHook Length | Bar Bending Schedule

Total Length of stirrup = Total length of Bar + 2 x Hook Length (Two hooks)

Total Length = L+2(9D)

Therefore Total length = L+18D (D is Diameter of bar)

But in some cases, we will consider 10D

IS code recommends hook length should not be less than; Minimum Hook Length = 75mm


11. Length of Straight Bar with Bends:

Total Length = Length of Straight Portion + 2(Hook Length)

Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap Length,Length of Straight Bar Formula | Bar Bending Schedule


12. Additional Length for Bent up or Crank Bar with Bends:

The additional length (la) that is introduced in the simple, straight end-to-end length of a reinforcement bar due to being bent up at (Theta) say 30o to 60o,

but it is generally 45o = l1 – l2 = la

Where,



bar bending schedule, bbs, bar bending schedule formula, bar bending schedule software, bar bending schedule of beam, bar bending schedule of slab, bar bending schedule of column, bar bending schedule of footing, bar bending schedule of staircase

Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap LengthFig: Hooks and bends in Reinforcement

Giving different values to

clip_image005

respectively), we get different values of la, as tabulated below:



Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap Length



Figure 2 presents the procedure to arrive at the length of hooks and the total length of a given steel reinforcement.

For 45 Deg | Crank length is provided in Slab  Shear stress is maximum at supports in Slab. So, to resist this stress we usually crank the bars at the ends of supports in slab.

Crank bar is bent up at an angle of 45 degree with the length of 0.42D

D = Depth of Slab-Top Cover-Bottom cover



Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap Length


13. Length for Extra Bars:

Now a days Extra bar is also provided under every crank bar. To keep crank bar in position. (Refer above image for clear idea).

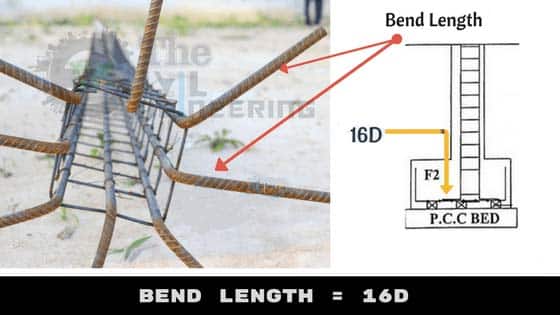

14. Bend Hook Length Formula for Column:

Bend Length is usually provided in columns at ends to tie the columns to the footings.

Bend Length = 16D  [D is Diameter of the Bar]

Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap LengthHook Length Formula for Column | Bar Bending Schedule


15. Overlap Length / Lap Length in Reinforcement (Bar Bending Schedule):

Suppose the length of building is 20 m. The standard length of Rebar is 12m. We have to join two Re-bars for the total length of building. In order to Join the two bars (overlap). Overlap length is adopted.

Neck Column to Footing Overlapping = 40d – 50d

Column to Column or Beam Overlapping = 50d

Development Length for Dowel Bars = 16d

General overlapping on Completion of 12m bar = 50d

or we can say that,

Overlap Length for compression members = 40D

Overlap Length for tension members = 50D

[D is the Diameter of the bar]

Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap LengthOverlap in Reinforcement Formula | Bar Bending Schedule


16. Hook’s Length Formula for Stirrups:

Hook’s Length for Stirrups are mostly equal to 10d, Where d is dia of bar.

Rectangular Stirrups:

Rectangular Stirrups | Length of Stirrups = 2A + 2B + (2 x 10d)

Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap LengthCutting Length of Rectangular Stirrups | Bar Bending Schedule

Triangular Stirrups:

Triangular Stirrups | Length of Stirrups = 3H + (2 x 10d)

Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap LengthCutting Length of Triangular Stirrups | Bar Bending Schedule

Circular Stirrups:

Circular Stirrups | Length of Stirrups = (3.142 x Dia of Steel Ring) + (2 x 10d)

Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap LengthCutting Length of Circular Stirrups | Bar Bending Schedule

Diamond Stirrups:

Diamond Stirrups | Length of Stirrups = 4H + (2 x 10d)

Bar Bending Schedule Basic Formulas, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap LengthCutting Length of Diamond Stirrups | Bar Bending Schedule

Spiral Stirrups:

Spiral Stirrups | Length of Stirrups = Length of Spiral or Helix Bar = n x (C2 + P2)^0.5

where,

  • n = No. of Pitches = n = H/p + 1
  • C = 3.142 x d
  • P = Pitch or Spacing between spirals

Bar Bending Schedule Basic Formulas, main bars, bar size, BBS Formula, Hook Length, Cut Length of Straight Bar, Cut Length of Bend up Bar or Crank Bar, Length of Extra Bars, Hook's Length Formula for Stirrups, Lap LengthCutting Length of Spiral Stirrups | Bar Bending Schedule


17. Bend Deduction

As per Pakistan or some other countries, there is no need for bend deduction but as per Indian standards we should consider bend deduction as per the following procedure;

For 45 deg bend = 1d

For 90 deg bend = 2d

For 135 deg bend = 3d

For 180 deg bend = 4d


18. Rolling Margin of Reinforcement Steel Bar Formula:

Cut reinforcement bar into 3 pieces, each length 1 meter Weight Each piece differently i.e. 10 mm Día Bar, Reinforcement calculation excel

1st one weight 0.617,

2nd one weight 0.62,

3rd one weight 0.625

Now Calculate the rolling margin of Reinforcement bar how to prepare bar bending schedule

steel reinforcement, bent up bars, main bars


19. Development Length for Reinforcement Bars:

bend length, steel reinforcement, bent up bars, main bars

steel reinforcement, bent up bars, steel quantity requirement, reinforcement requirement, main bars


OTHER POSTS:

How to Find Cutting Length of Chair Bar in Footing

How to Calculate Cutting Length of Stirrups

Bar Bending Schedule for RCC Box Culvert in Excel | Download Sheet

Bar Bending Schedule for Tie Beams/Strap Beams | BBS of Tie Beam

Bar Bending Schedule for footings | Steel Estimation for footings

Bar Bending Schedule (BBS) | BBS Step by Step Preparation | Excel Sheet

Design Example of Dog Legged Staircase

Civil Engineering Basic Knowledge


FAQs:


What is Bar Bending Schedule?

A BBS is a comprehensive list that describes the location and type of each piece of rebar or fabric in a reinforcement drawing of a structure. Bar scheduling is the process of writing down where reinforcement bars will be located and how many there will be.

Bar Bending Schedule Format?

Various companies adopt different formats for their bbs reports, but all include the same basic items: Item or Member or Location, Description or Bar Mark or Bar Code, Bar No. Spacing (mostly used for ties, stirrups etc), Shape of Bar or Shape code, No. of Bars, Cut Length, No. of Items, Total Length, Total Weight summary,

What is the Weight of Reinforcement Bar Formula?

The weight per length of the reinforcement bars is expressed as, Weight per meter = D²/ 162 = kg/m where D is in 'mm' Weight per feet = D² / 533 = kg/ft where D is in 'mm', Weight per feet = D²/ 52.896 = kg/ft where D is in # (Nos)

Conclusion:

Full article on Bar Bending Schedule Basic Formulas | BBS Formula | Hook Length | Cut Length of Straight Bar | Cut Length of Bend up Bar or Crank Bar | Length of Extra Bars | Hook’s Length Formula for Stirrups | Lap Length. Thank you for the full reading of this article in “The Civil Engineering” platform in English. If you find this post helpful, then help others by sharing it on social media. If you have any question regarding article please tell me in comments.
